Prop-Free and up for adventure

Jet Drive

Mechanical: 150 hp Mechanical or Tiller: 115 hp, 90 hp, 60 hp, 40 hp

Yamaha’s Jet Drive four strokes, can boldly go where no propped outboard would dare. Shallows. Rocky-bottom rivers. Shoals. White-water rapids. They’d all prove treacherous for a propeller-driven outboard, but a jet drive is all over it. Prop-free, you can “off-road” without worrying about breaking a prop on rocks and other underwater obstructions. So, while you may be giving up the prop, you’re gaining a whole lot of freedom, with powerful, fuel efficient Yamaha Jet Drives available in 150, 115, 90, 60 and 40 horsepower.

Owners Manuals

INCREDIBLE MANEUVERABILITY

With no gearcase or propeller extending below the hull, a jet drive allows you to maneuver around or pass over obstructions that would limit the travel of a conventional propeller-driven outboard. And with electronic multi-point fuel injection, you get lots of responsive power with fuel-sipping efficiency.

Power & Performance

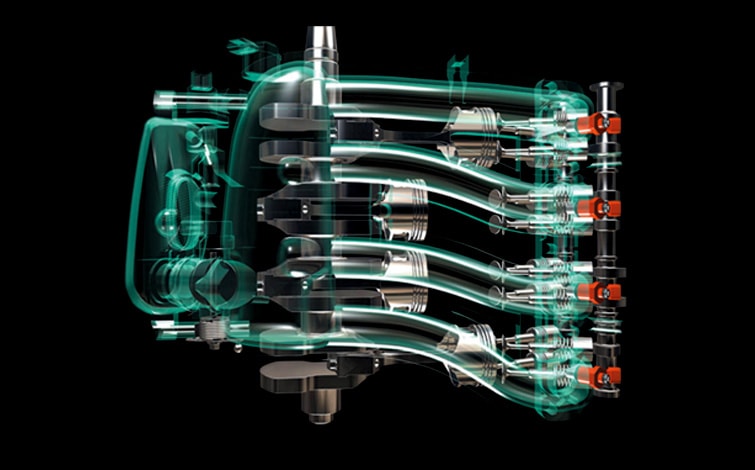

Fuel Economy

Precision Multi-Point Electronic Fuel Injection delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization further enhancing fuel economy.

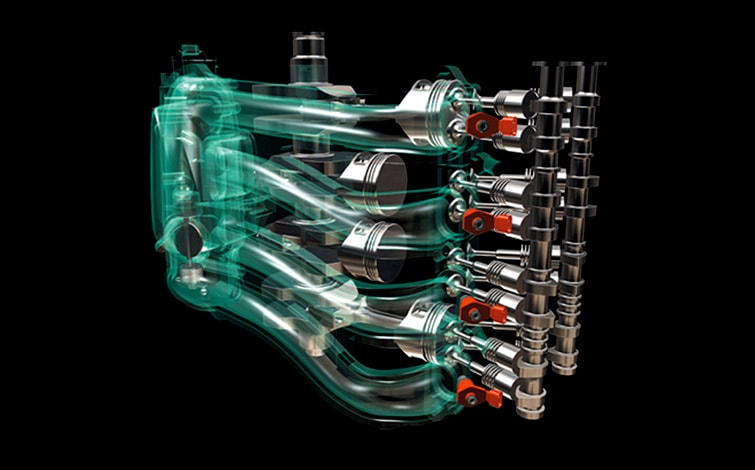

Lightweight, Compact Design

Single or Double Overhead Camshaft platforms provide lighter weight, impressive acceleration and better fuel efficiency.

Incredible Maneuverability

Microcomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions.

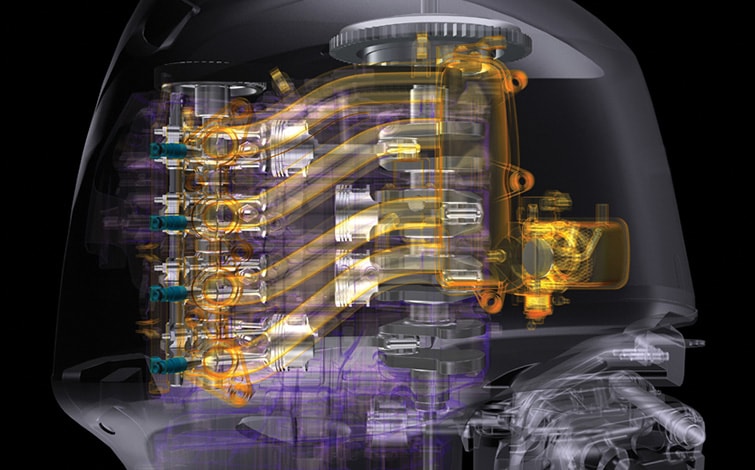

Powerful Hole Shot

The Composite Intake Manifold on Yamaha's Jet Drive F150, F115, F90, F60 and F40 feature long tube intake tracks, tuned to increase airflow. This boosts low-end and midrange torque for a more powerful hole shot and increased acceleration. Even with all this responsive power, an air silencer box and surge tank reduce air intake noise and air turbulence for smooth, quiet operation.

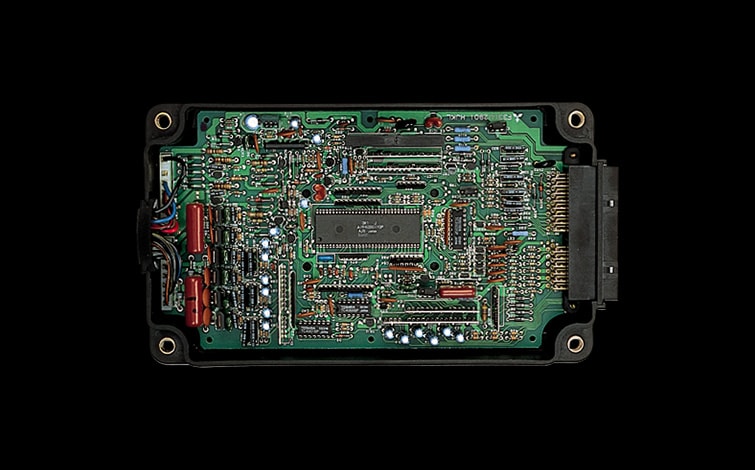

Optimum Performance

Microcomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions.

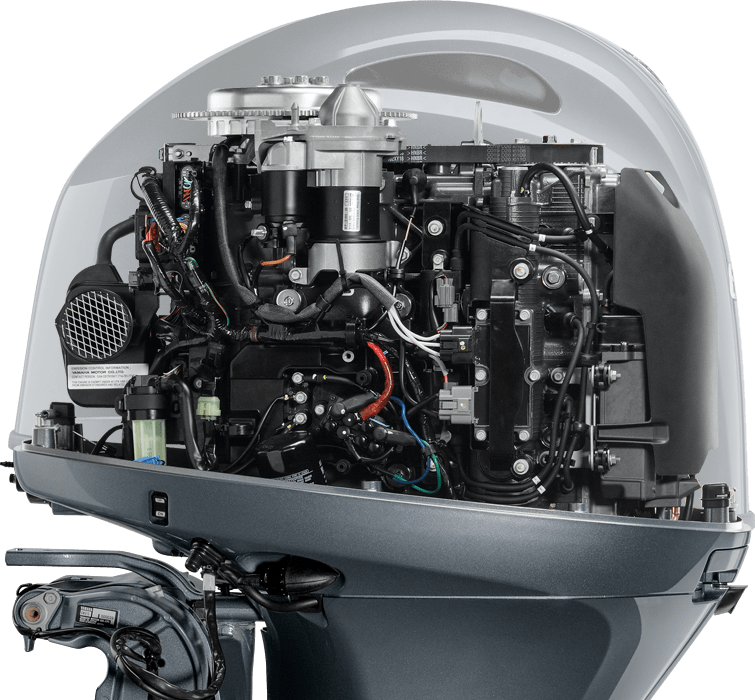

Reliability & Durability

Corrosion Protection

Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Jet Drive four stroke outboards.

Convenience & Control

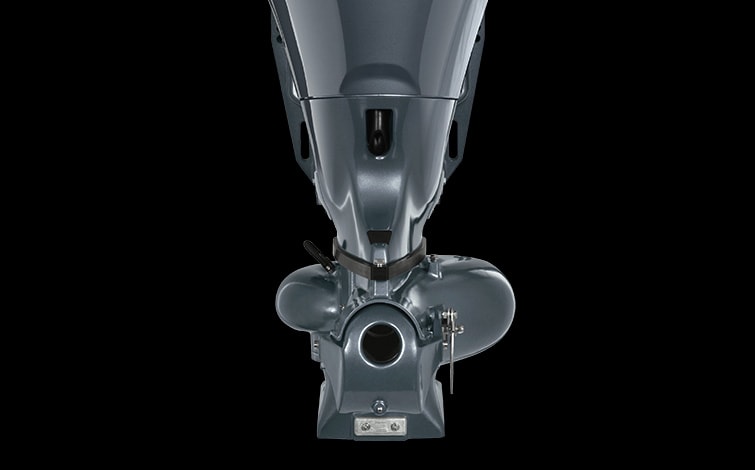

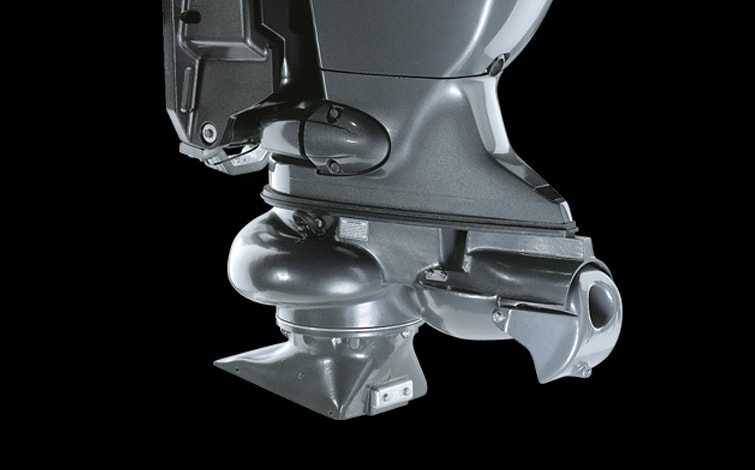

Incredible Maneuverability

With no gearcase or propeller extending below the hull, a jet drive allows you to maneuver around or pass over obstructions that would limit the travel of a conventional, propped outboard.

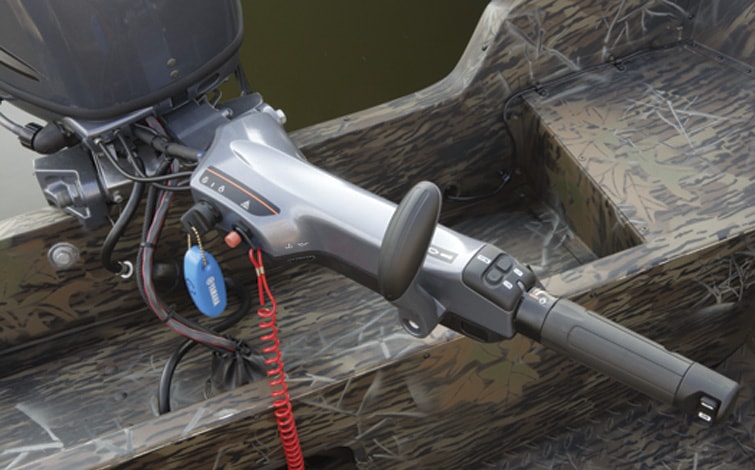

Ergonomic Control

Yamaha’s award-winning, Multi-Function Tiller Handle (optional on F115, F90, F60 and F40 jet models) features an ergonomic design for easy shifting , better grip and less rotation from idle to wide-open throttle. This reduces operator fatigue for a full day of enjoyable boating. Truly multi-function, it control features include throttle, throttle friction control, shift lever, key switch, stop switch and a Power Trim & Tilt switch.

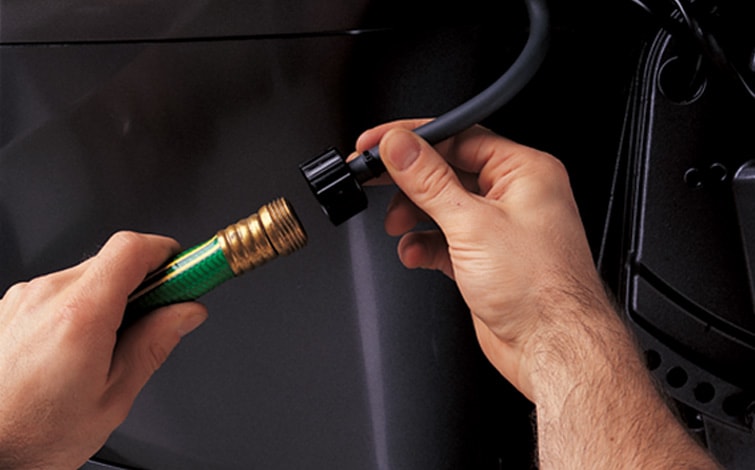

Easy Engine Flushing

A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.

Expand Gallery

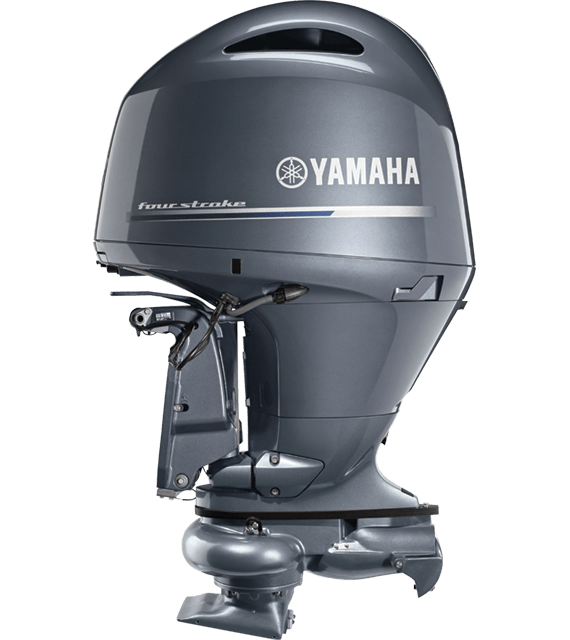

Jet Drive 150 hp

Our 2.7-liter F150 Jet Drive four stroke produces 105 hp at the pump. It features a DOHC, 16-valve design with four valves per cylinder and long tube intake tracks. This produces ample power for navigating shallow, rocky water.

Compatible with mechanical controls, analog gauges and Command Link^®
493 pounds (including jet pump assembly)
Fits 25-inch transom boats
Solid 35-amp alternator
Power Trim & Tilt

Controls

Gauges

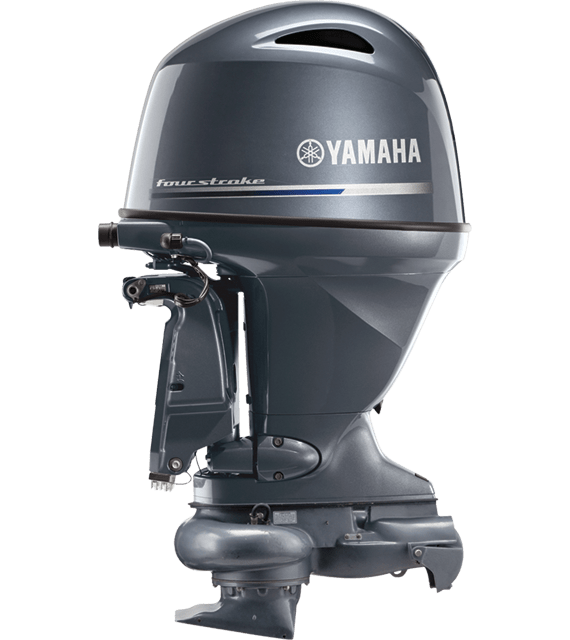

Jet Drive 115 hp

Our 1.8-liter F115 Jet Drive four stroke produces 80 hp at the pump. Its compact, light-weight DOHC design features 16-valves with four valves per cylinder and long tube intake tracks. This produces ample power for deck boats and deep-V hulls navigating shallow, rocky rivers.

Compatible with mechanical controls, our Multi-Function Tiller Handle, analog gauges and Command Link^®
378 pounds (including jet pump assembly)
Fits 25-inch transom boats
Solid 35-amp alternator
Power Trim & Tilt

Controls

Gauges

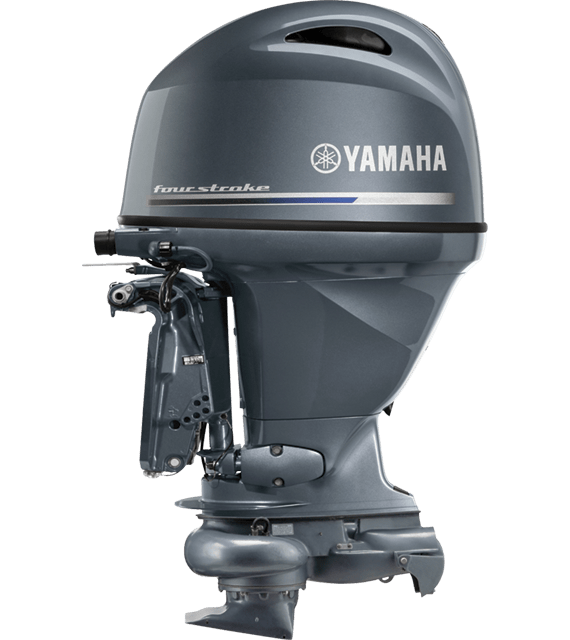

Jet Drive 90 hp

Our completely redesigned, 1.8-liter F90 Jet Drive four stroke produces 65 hp at the pump. Its compact, light-weight SOHC four-cylinder, in-line design features a long-track induction system and Yamaha’s proprietary YDC-30 aluminum alloy. This creates a light, compact, powerful outboard for deck boats and deep-V hulls navigating shallow, rocky rivers.

Compatible with mechanical controls, our Multi-Function Tiller Handle, analog gauges and Command Link^®
354 pounds (including jet pump assembly)
Fits 25-inch transom boats
Solid 35-amp alternator
Power Trim & Tilt

Controls

Gauges

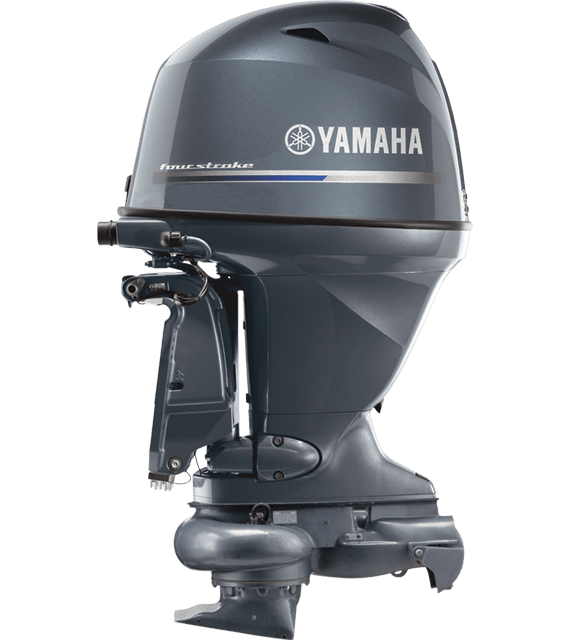

Jet Drive 60 hp

Our 1-liter F60 Jet Drive four stroke produces 40 hp at the pump. Its compact, light-weight SOHC four-cylinder, in-line design features a single throttle valve and long-track induction system. This creates a light, compact, powerful outboard and improves throttle response.

Compatible with mechanical controls, our Multi-Function Tiller Handle, analog gauges and Command Link^®
257 pounds (including jet pump assembly)
Fits 25-inch transom boats
Solid 17-amp alternator
Power Trim & Tilt

Controls

Gauges

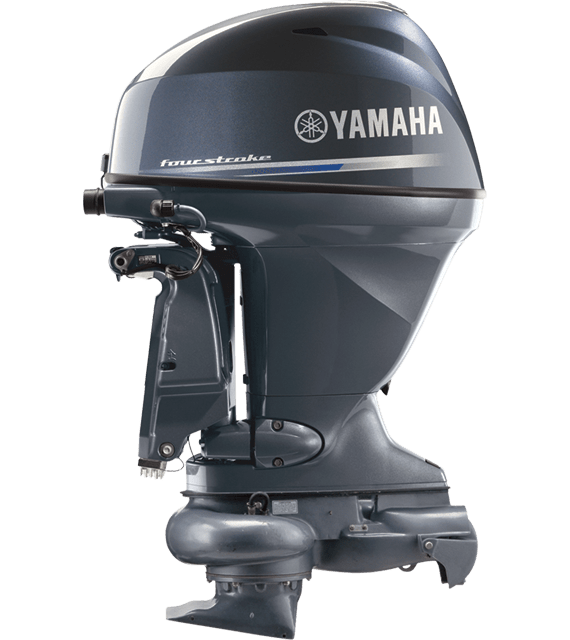

Jet Drive 40 hp

Our 747-cc F40 Jet Drive four stroke produces 30 hp at the pump. Its compact, light-weight SOHC three-cylinder, in-line design features a long-track induction system and a single throttle valve. This creates compact, light-weight power and improves throttle response.

Compatible with mechanical controls, our Multi-Function Tiller Handle, analog gauges and Command Link^®
219 pounds (including jet pump assembly)
Fits 20-inch transom boats
Solid 16-amp alternator
Nitro Assist Tilt

Controls

Gauges

Specs & Compare

150 hp
115 hp
90 hp
60 hp
40 hp

Engine Comparison

Engine Type	Inline 4
Displacement	2.7L
Bore x Stroke	94mm x 96.2mm (3.70 x 3.79 in)
Prop Shaft Horsepower	105hp @ 5500rpm
Full Throttle RPM Range	5000 ~ 6000 rpm
Alternator Output at W.O.T.	35 Amp
Compression Ratio	9.0:1
Fuel Induction System	EFI
Weight †	225kg (493 lbs)
Recommended Fuel	Octane 87
Recommended Engine Oil	Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration	Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating	3-Star
Exhaust	Through Jet Nozzle
Intake	16
Ignition	TCI Microcomputer
Spark Plug	LFR5A-11
Alternator Output	35 Amps
Starting System	Electric
Lubrication	Wet Sump
Engine Oil Capacity	4.5L/4.3L
Recommended Cooling	Thermostatic Control
Ethanol Blend Limit	10% Maximum
Gear Ratio	Direct Drive
Gear Shift	Forward, Neutral, Reverse
Shaft Length	Fits 25" Transom
Degree of Tilt	70°
Degree of Trim	-4 through 16°
Dry Weight	225kg (495 lbs)
Mounting Centers	N/A
Steering Angle (maximum)	35° from center, either direction
Warranty	Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial

† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).

Engine Comparison

Engine Type	Inline 4
Displacement	1.8L
Bore x Stroke	81mm x 88.9mm (3.19 x 3.5 in)
Prop Shaft Horsepower	80hp @ 5800rpm
Full Throttle RPM Range	5000 ~ 6300 rpm
Alternator Output at W.O.T.	35 Amp
Compression Ratio	10.0:1
Fuel Induction System	EFI
Weight †	171kg (378 lbs)
Recommended Fuel	Octane 87
Recommended Engine Oil	Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration	Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating	3-Star
Exhaust	Through Jet Nozzle
Intake	16
Ignition	TCI Microcomputer
Spark Plug	LKR6E
Alternator Output	35 Amps
Starting System	Electric
Lubrication	Wet Sump
Engine Oil Capacity	3.2L/3.0L
Recommended Cooling	Thermostatic Control
Ethanol Blend Limit	10% Maximum
Gear Ratio	Direct Drive
Gear Shift	Forward, Neutral, Reverse
Shaft Length	Fits 25" Transom
Degree of Tilt	70°
Degree of Trim	-4 through 16°
Dry Weight	225kg (495 lbs)
Mounting Centers	N/A
Steering Angle (maximum)	35° from center, either direction
Warranty	Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial

Engine Comparison

Engine Type	Inline 4
Displacement	1.8L
Bore x Stroke	81mm x 88.9mm (3.19 x 3.5 in)
Prop Shaft Horsepower	65hp @ 5500rpm
Full Throttle RPM Range	5000 ~ 6000 rpm
Alternator Output at W.O.T.	35 Amp
Compression Ratio	10.0:1
Fuel Induction System	EFI
Weight †	161kg (354 lbs)
Recommended Fuel	Octane 87
Recommended Engine Oil	Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration	Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating	3-Star
Exhaust	Through Jet Nozzle
Intake	16
Ignition	TCI Microcomputer
Spark Plug	LFR5A-11
Alternator Output	35 Amps
Starting System	Electric
Lubrication	Wet Sump
Engine Oil Capacity	3.2L/3.0L
Recommended Cooling	Thermostatic Control
Ethanol Blend Limit	10% Maximum
Gear Ratio	Direct Drive
Gear Shift	Forward, Neutral, Reverse
Shaft Length	Fits 25" Transom
Degree of Tilt	70°
Degree of Trim	-4 through 16°
Dry Weight	225kg (495 lbs)
Mounting Centers	N/A
Steering Angle (maximum)	35° from center, either direction
Warranty	Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial

Engine Comparison

Engine Type	Inline 4
Displacement	1.0L
Bore x Stroke	65mm x 75mm (2.56 x 2.95 in)
Prop Shaft Horsepower	40hp @ 5500rpm
Full Throttle RPM Range	5000 ~ 6000 rpm
Alternator Output at W.O.T.	17 Amp
Compression Ratio	9.5:1
Fuel Induction System	EFI
Weight †	116kg (257 lbs)
Recommended Fuel	Octane 87
Recommended Engine Oil	Yamalube® 4-M (See Owner's Manual)
Recommended Fuel Filtration	Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating	3-Star
Exhaust	Through Jet Nozzle
Intake	8
Ignition	TCI Microcomputer
Spark Plug	DPR6EB-9
Alternator Output	17 Amps
Starting System	Electric
Lubrication	Wet Sump
Engine Oil Capacity	2.1L/1.9.L
Recommended Cooling	Thermostatic Control
Ethanol Blend Limit	10% Maximum
Gear Ratio	Direct Drive
Gear Shift	Forward, Neutral, Reverse
Shaft Length	Fits 25" Transom
Degree of Tilt	69°
Degree of Trim	-4 through 16°
Dry Weight	225kg (495 lbs)
Mounting Centers	N/A
Steering Angle (maximum)	40° from center, either direction
Warranty	Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial

Engine Comparison

Engine Type	3 cyl
Displacement	747cc
Bore x Stroke	65 x 75 mm (2.56 x 2.95 in)
Prop Shaft Horsepower	30hp @ 5500rpm
Full Throttle RPM Range	5000 ~ 6000 rpm
Alternator Output at W.O.T.	16 Amp
Compression Ratio	9.4:1
Fuel Induction System	EFI
Weight †	99 kg (219lbs) - 103 kg (227 lbs)
Recommended Fuel	Octane 87
Recommended Engine Oil	Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration	Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating	2-Star
Exhaust	Through Jet Nozzle
Intake	6
Ignition	CDI Microcomputer
Spark Plug	DPR6EB-9
Alternator Output	16 Amps
Starting System	Electric
Lubrication	Wet Sump
Engine Oil Capacity	1.7L/1.5L
Recommended Cooling	Thermostatic Control
Ethanol Blend Limit	10% Maximum
Gear Ratio	Direct Drive
Gear Shift	Forward, Neutral, Reverse
Shaft Length	Fits 20" Transom
Degree of Tilt	65°
Degree of Trim	-4° through +16°
Dry Weight	99 kg (219lbs) - 103 kg (227 lbs)
Mounting Centers	N/A
Steering Angle (maximum)	40° from center, either direction
Warranty	Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial
