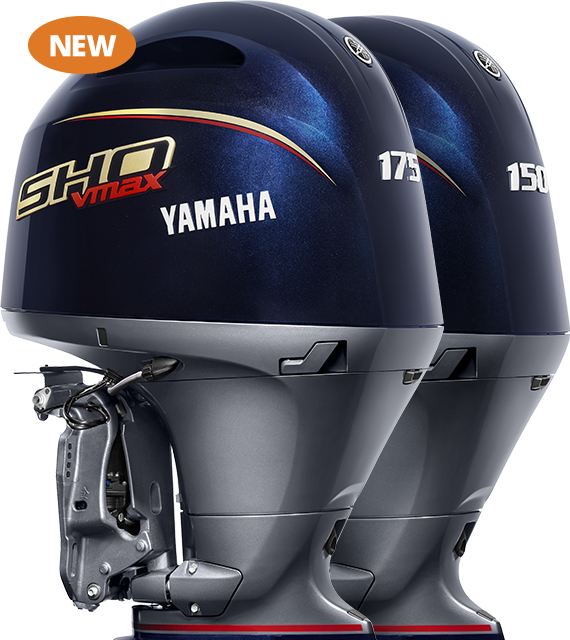

In-Line Four V MAX SHO® SERIES
You live for the weekends. The boat’s hitched, the gear is loaded and you know exactly where you’re headed to fish. Whether there are snook and redfish, bass or walleye on the agenda, the In-Line Four V MAX SHO® is game. Available in 175, 150, 115 and 90 horsepower, this powerful In-Line Four series sports a sleek, new V6 V MAX SHO®-inspired cowling design for 2024. It also offers a surprising tech package for maximum efficiency and high performance, and the option of a 25-inch shaft for deeper waters. This makes the I-4 V MAX SHOs perfect, no matter what kind of fishing you love.
Meet the Lineup
175 HP
Lean and mean, the In-Line Four V MAX SHO® 175 delivers exhilarating hole shot and class-leading top speed. It clocked in at 62 mph with a tournament load—up to five mph faster than its VF150 sibling.*
- 2.8L high-output four cylinder
- 480 lbs. dry weight
- Shaft lengths available: 20” and 25”
- 50 amps of charging power
- New tilt stop lever
- Optional Variable Trolling RPM via gauge
150 HP
The IBEX Award-winning In-Line Four V MAX SHO® 150 features an exhilarating top speed and a 7.7-second hole shot. Now that's signature V MAX SHO performance.*
- 2.8-liter high-output four cylinder
- 480 lbs. dry weight
- Shaft lengths available: 20” and 25”
- 50 amps of charging power
- New tilt stop lever
- Optional Variable Trolling RPM via gauge
115 HP
The In-Line Four V MAX SHO® 115 is Yamaha’s fastest 115-hp four stroke, ever, with a top speed of nearly 51 mph.* On top of its impressive speed, it features tech unheard of in its class, including a long-track intake system, free-flow exhaust and knock sensor.
- 1.8-liter high-output four cylinder
- 377 lbs. dry weight
- Shaft lengths available: 20” and 25”
- 35 amps of charging power
- Optional Variable Trolling RPM via gauge
90 HP
The All-New VF90 In-Line Four V MAX SHO. A single-overhead-camshaft design with four valves per cylinder and 1.8-liter displacement makes the In-Line Four V MAX SHO 90 a class leader in torque, top speed and efficiency. Still, it's one of the quietest 90-horsepower outboards on the water. That makes for some pretty stealthy fishing.
- Only 353 pounds
- Powerful 35-amp alternator
- Shaft lengths available: 20” and 25”
- 35 amps of charging power
- Optional Variable Trolling RPM via gauge or remote switch
175 HP
Engine Comparison
| Weight † | 218 kg (480 lbs) - 222 kg (489 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 2.8L |
| Bore x Stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 175 hp at 5500 rpm |
| Alternator Output at W.O.T. | 50 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L/4.3L w/without filter |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 1.86:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" - 25" |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 32° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
150 HP
Engine Comparison
| Weight † | 218 kg (480 lbs) |
|---|---|
| Full Throttle RPM Range | 5000 ~ 6000 rpm |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 2.8L |
| Bore x Stroke | 96 x 96.2mm (3.78 x 3.79in) |
| Prop Shaft Horsepower | 150 hp at 5500 rpm |
| Alternator Output at W.O.T. | 50 Amp |
| Compression Ratio | 10.3:1 |
| Recommended Fuel | Octane 89 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR6A-11 |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 4.5L/4.3L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.00:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" - 25" |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 32° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
115 HP
Engine Comparison
| Weight † | 171 kg (377 lbs) - 175 kg (386 lbs) |
|---|---|
| Full Throttle RPM Range | 5300 ~ 6300 |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 1.8L |
| Bore x Stroke | 81 x 88.9mm (3.19 x 3.5in) |
| Prop Shaft Horsepower | 115hp at 5500 rpm |
| Alternator Output at W.O.T. | 35 Amp |
| Compression Ratio | 10.0:1 |
| Recommended Fuel | Octane 87 |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LKR6E |
| Starting System | Electric |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 3.2L/3.0L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.15:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 20" - 25" |
| Degree of Tilt | 70° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 35° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
90 HP
Engine Comparison
| Weight † | 20" 353 lbs, 25" 362 lbs |
|---|---|
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Fuel Induction System | EFI |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Engine Type | Inline 4 |
| Displacement | 1.8L |
| Bore x Stroke | 81 x 88.9mm (3.19 x 3.5in) |
| Prop Shaft Horsepower | 90hp @ 5500 RPM |
| Alternator Output at W.O.T. | 35 amp |
| Compression Ratio | 10.0:1 |
| Recommended Fuel | Regular Unleaded (Minimum Pump Octane 87) |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller |
| Intake | 16 |
| Ignition | TCI Microcomputer |
| Spark Plug | LFR5A-11 |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 3.2L / 3.0L (with / without filter) |
| Recommended Cooling | Water, Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (28/12) 2.33 |
| Gear Shift | F-N-R |
| Shaft Length | L = 20" X = 25" |
| Degree of Tilt | -4° through +66° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 26" |
| Steering | Mechanical Remote |
| Steering Angle (maximum) | 35° from center, either direction |
| Warranty | Limited Pleasure Three Years, Government Three Years, Commercial One Year |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
